Bridge Navigational Watch Alarm System
AlphaBNWAS:
- Main unit watch alarm, flush mounted LR approved
- Cabin unit buzzer, flush mount
- Cabin unit buzzer, wall mount
- Reset button
- Selector switch
- Outdoor wing remote reset
AlphaBNWAS MF Line:
- Main unit - Alpha MF line
- Reset unit - Alpha MF line
- Cabin unit buzzer - Alpha MF line
- Selector - Alpha MF line
Bridge Navigational Watch Alarm System - cost effective design, operator friendly, IMO approved and extendable by means of extra reset buttons.

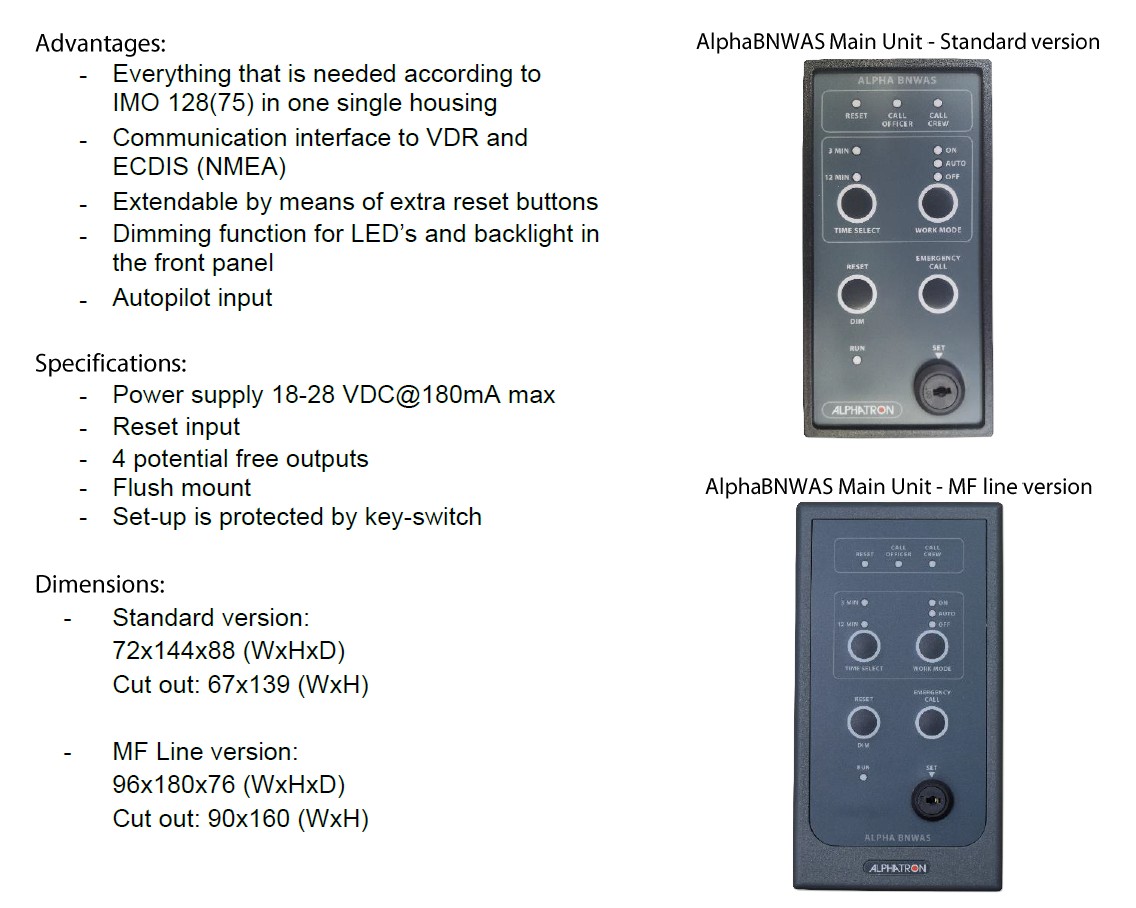

The AlphaBNWAS main unit is the heart of the Bridge Navigational Watch Alarm system. The main unit is type approved and can be applied on all vessels.
The main unit can be activated automatically or manually.
Communication to VDR is integrated and the autopilot can also be easily connected. The system can be expanded with remote reset buttons and PIR's. A selector unit is also an option to regulate the different officers on duty.
The AlphaBNWAS is approved as a BNWAS system and is mandatory equipment with respect to the following requirements and regulations:
The AlphaBNWAS system has Bureau Veritas type examination for the compliance with:
- SOLAS 74 Convention as amended, Regulations V/18, V/19
- IMO Res. A.694(17)
- IMO Res. MSC.128(75)
- IMO Res. MSC.191(79)
- MSC.302(87)
- MSC.1/Circ.1474
The AlphaBNWAS system is also compliant with:
- IEC 60945 Ed. 4.0 (2002) + /Corr.1 (2008)
- IEC 61162-1 (2010) /Corr. 1 (2013)
- IEC 62288 Ed. 2.0 (2014)
- IEC 62616 Ed. 1.0 (2010) incl. /Corr.1 (2012)
